Ancham technology of adhesives helps our customers meet some of the more complex challenges

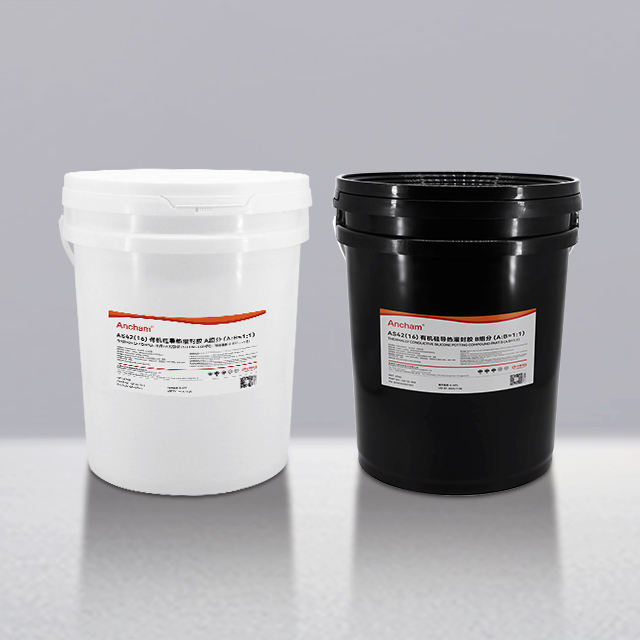

AS42(16)

Product Overview

AS42(16) is a two-component, high thermal conductivity, flexible silicone sealant product with 100% solid content, cured at room temperature, and heated to accelerate its curing rate. After curing, it forms an elastic body. Provides flame retardant, insulation, thermal conductivity, low modulus, and sealing performance. Can achieve automated production. Specially designed for electronic sealing applications, meeting the needs of ultra-low stress and high heat conduction.

Product Features

■ Thermal conductivity 1.6W/m·K.
■ Low viscosity, good leveling performance.
■ Low contact thermal resistance.
■ 100% solid, no exudate after curing.
■ Low stress provides more effective protection for electronic components and chips.
■ Excellent environmental aging resistance and high and low temperature resistance.
■ Flame retardancy meets UL94-V0.
■ Compliant with RoHS and Reach, halogen-free.
Product parameters
Parameter Specification
Product Model AS42(16)
Color Grey
1:1
3000±1000
25℃
65±10
Shore 00
4~6h Initial Curing Time
24~48h Complete Curing Time
-50~200℃
1.6W/m·K
